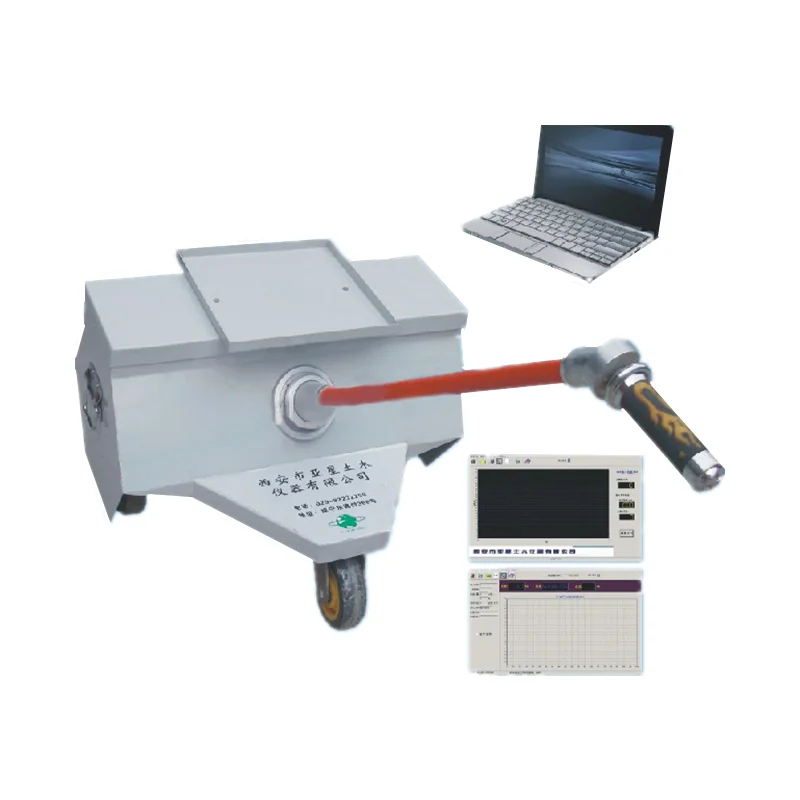

B043 Laser Pavement Structure Depth Tester or TD texture depth

Name: B043 Laser Pavement Structure Depth Tester or TD texture depth
Brand: ZEALCHON
Price: 12000 USD

China B043 Laser Pavement Structure Depth Tester or TD texture depth wholesale

Place of Origin : China

Brand Name : ZEALCHON

Model Number : B043

Certification : ISO

Price : $12000

Packaging Details : WOODEN BOX

Delivery Time : within 12 days

Payment Terms : t/t, L/C, T/T, Western Union

Supply Ability : 100 set pr month

MOQ : 1 set

Power source : 12 v contained power pack and charging storage

Working hours : 12H (Also can charge with car cigarette lighter)

Laser sensor : ±20mm ±0.01mm

Working distance : 50mm-120mm

Acquisition interval : ≤10m

Contact Now

Product Description

B043 Laser Pavement Structure Depth Tester or TD texture depth

Application:

The equipment is suitable for the acceptance of engineering quality of building, rebuilding airport, port, road. And it can test under the condition normal traffic of no serious damage such as water, snow, mud etc. It can collect depth of pavement structure continuously, but not to adapt to the depth measurement of slotted cement concrete pavement structure.

Technical performance

1. Automatic data acquisition, transmission, recording and processing with a compute, respectively conducted by specialized software automatic control

2. Power source: 12 v contained power pack and charging storage

Working hours: 12H (Also can charge with car cigarette lighter)

3. Laser sensor ±20mm ±0.01mm distinguishability:0.1mm Working distance:50mm-120mm distinguishability:0.01mm(linear measurement)

4. Acquisition interval:≤10m

5. Test speed of push style:3-12km/h operating temperature:-10℃-60℃

6. Set time, the number of roads, the mileage number, pile number, collect depth structure average standard deviation, graphics, the original process data (analysis) automatically.

Parameter

Test speed of push style	3-12km/h
Laser sensor	±20mm ±0.01mm
Working distance	50mm-120mm
Acquisition interval	≤10m
The number of operators (including the driver)	1-2 people
Operating temperature	-10℃-60℃
System power supply	DC 12 V
Between the bottom of the laser sensor and the clear distance pavement	100 mm (testing)
Detection range: TRI	0-100 m and other detection distance can be set
Test repeatability	Deviation factor: CV < 3%
