250kn Fully Automatic Trailer Drop Falling Hammer Weight Deflectometer Testing Machine 250kn

Name: 250kn Fully Automatic Trailer Drop Falling Hammer Weight Deflectometer Testing Machine 250kn
Brand: zealchon
Price: 50000 USD

China 250kn Fully Automatic Trailer Drop Falling Hammer Weight Deflectometer Testing Machine 250kn wholesale

Brand Name : zealchon

Model Number : JGFWD-5T

Certification : ISO

Place of Origin : China

MOQ : 1

Price : $50000

Payment Terms : T/T, Western Union

Supply Ability : 100sets/month

Delivery Time : 7days

Packaging Details : wooden box

Rated impact load : 250 KN

Hammer Weight : 50kn

displacement sensor type : geophone speed sensor

the pulse load duration : 15-20ms

Contact Now

Product Description

250kn Fully Automatic Trailer Drop Falling Hammer Weight Deflectometer Testing Machine 250kn

Specification

Fully Automatic Trailer Drop Falling Hammer Weight Deflectometer Testing Machine for Pavement

JGFWD-200 Falling Weight Deflectometer is an automatic trailer bending measurement system for pavement structure strength detection. It is a key topic of the Ministry of Communications and was undertaken by our company and Southeast University in 1986. JGFWD-200 has won the ministerial achievement award and was included in the Ministry’s key promotion and application project of 1996 scientific and technological achievements.

1. Equipped with a laptop. With the “one-button” function: through an external key switch or computer function key or mouse can complete the automatic measurement work, and one person can operate it;
2. Temperature measurement function;
3. Automatic detection function of bending and load value;
4. It can work continuously in the field. There are two original power supply modes: the first method is constantly charged
the battery of FWD by the generator of the vehicle; The second is to use 220V chamber power to set the BATTERY of FWD;
5. With mechanical locking function;
6. It has the function of lifting the bearing plate off the road in case of system breakdown so that FWD is in a
transportation state;
7. With manual operation function;
8. Function of monitoring the working state of the bearing plate;
9. DMI position and distance measurement function;
10. Installed in the rear of the FWD trailer, one alarm light on the left and one on the right to increase driving safety;
11. Software Functions:

11.1 Normalization of measurement data and standard shaft load;
11.2 It can be compared and converted with Beckman beam;
11.3 Automatically obtain the best conversion coefficient for Beckmann beam conversion;
11.4 The mean value, variance, and deflection representative value can be calculated automatically, and related tables can be generated according to relevant regulations of the Ministry of Communications;
11.5 Data format conversion can be carried out to convert the kilometer data of each measuring point into pile number data;

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	JGFWD-5T
Power	Electronic
Rated impact load	250 KN
Hammer Weight	50kn
displacement sensor type	geophone speed sensor
Warranty	1 Year
Certificate	ISO
Power supply	220V 50Hz
the pulse load duration	15-20ms
Product name	portable Drop Weight Tester
Application	Soil

Packing & Delivery

Company Profile

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese

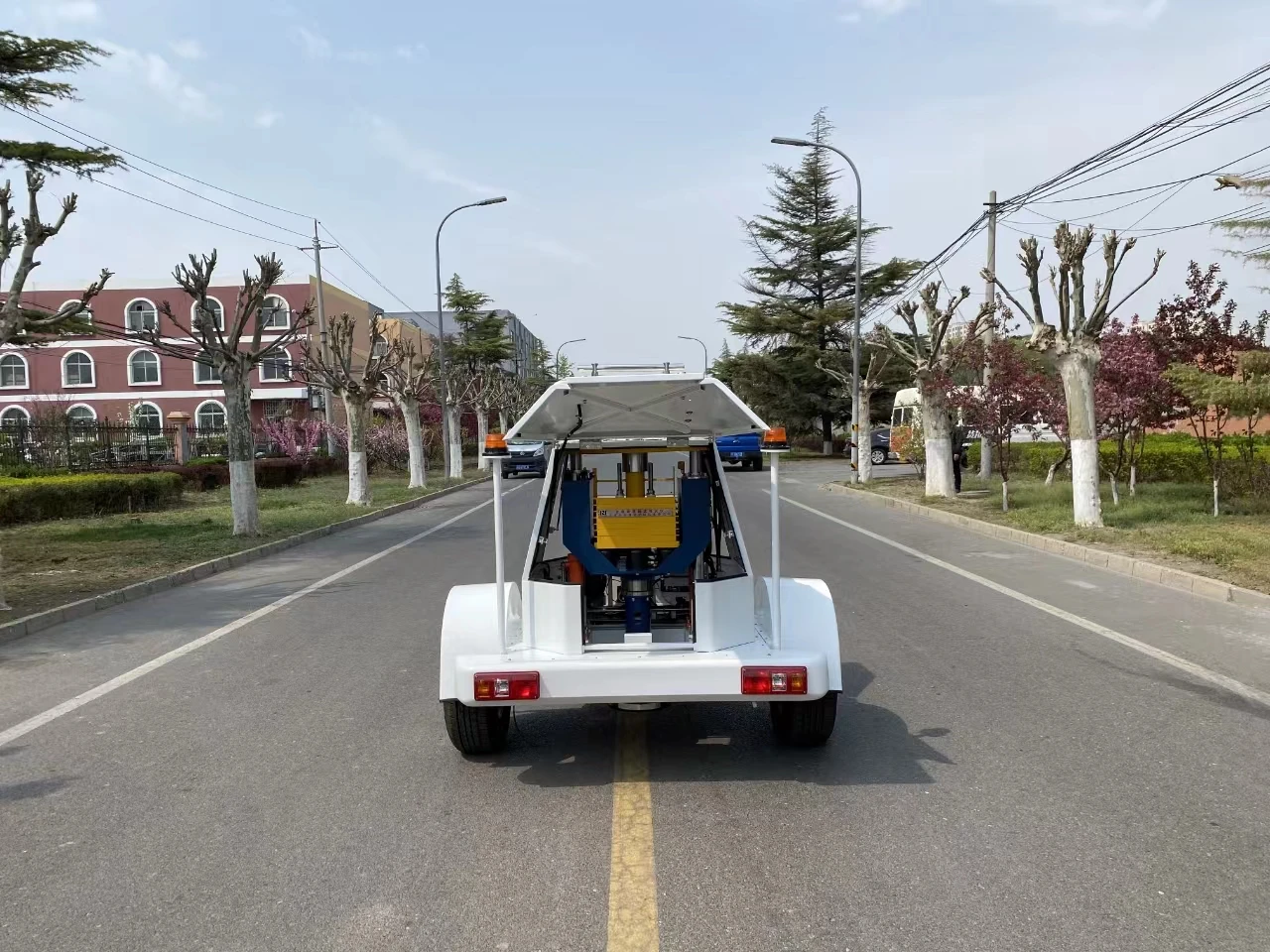

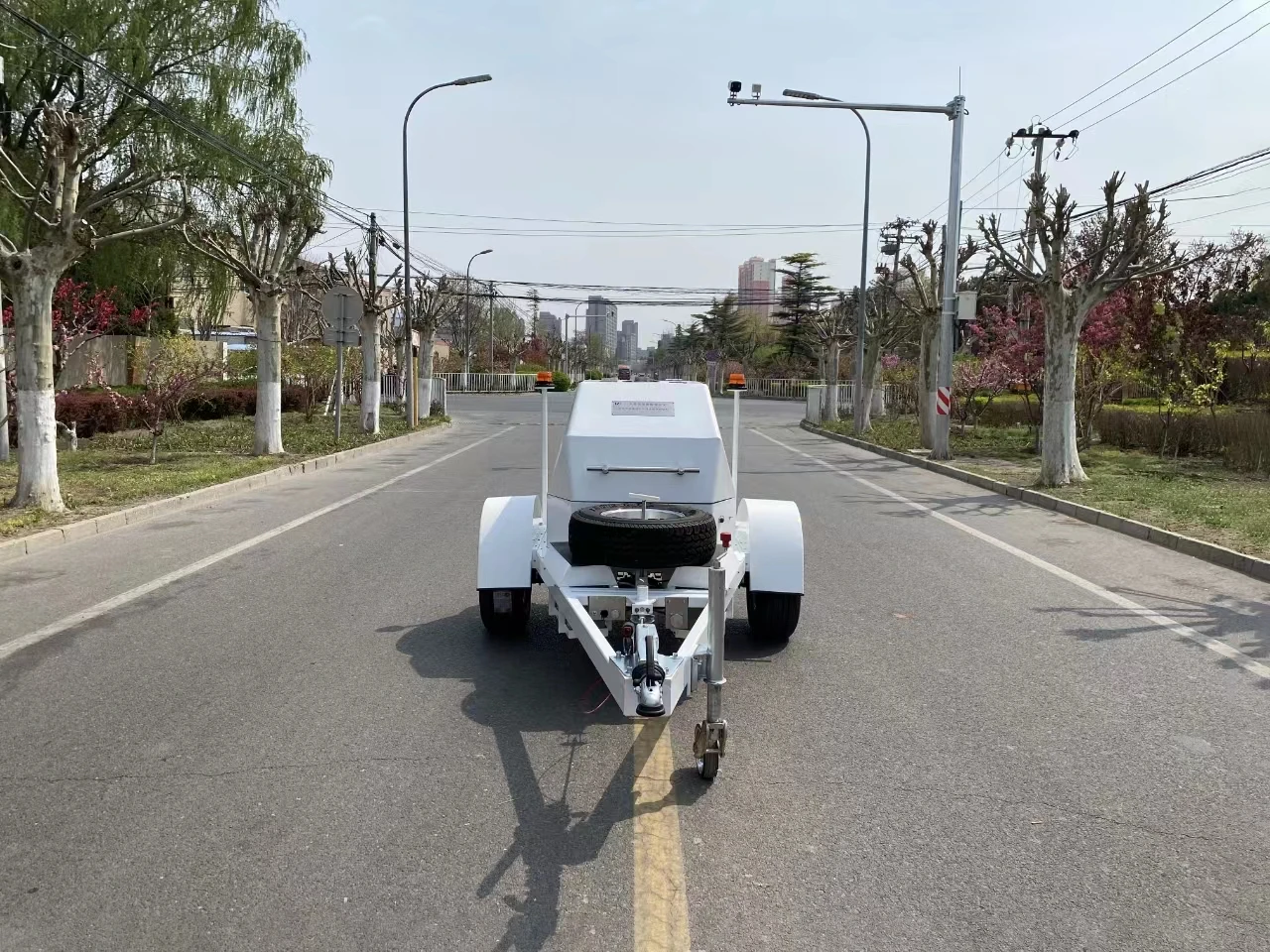

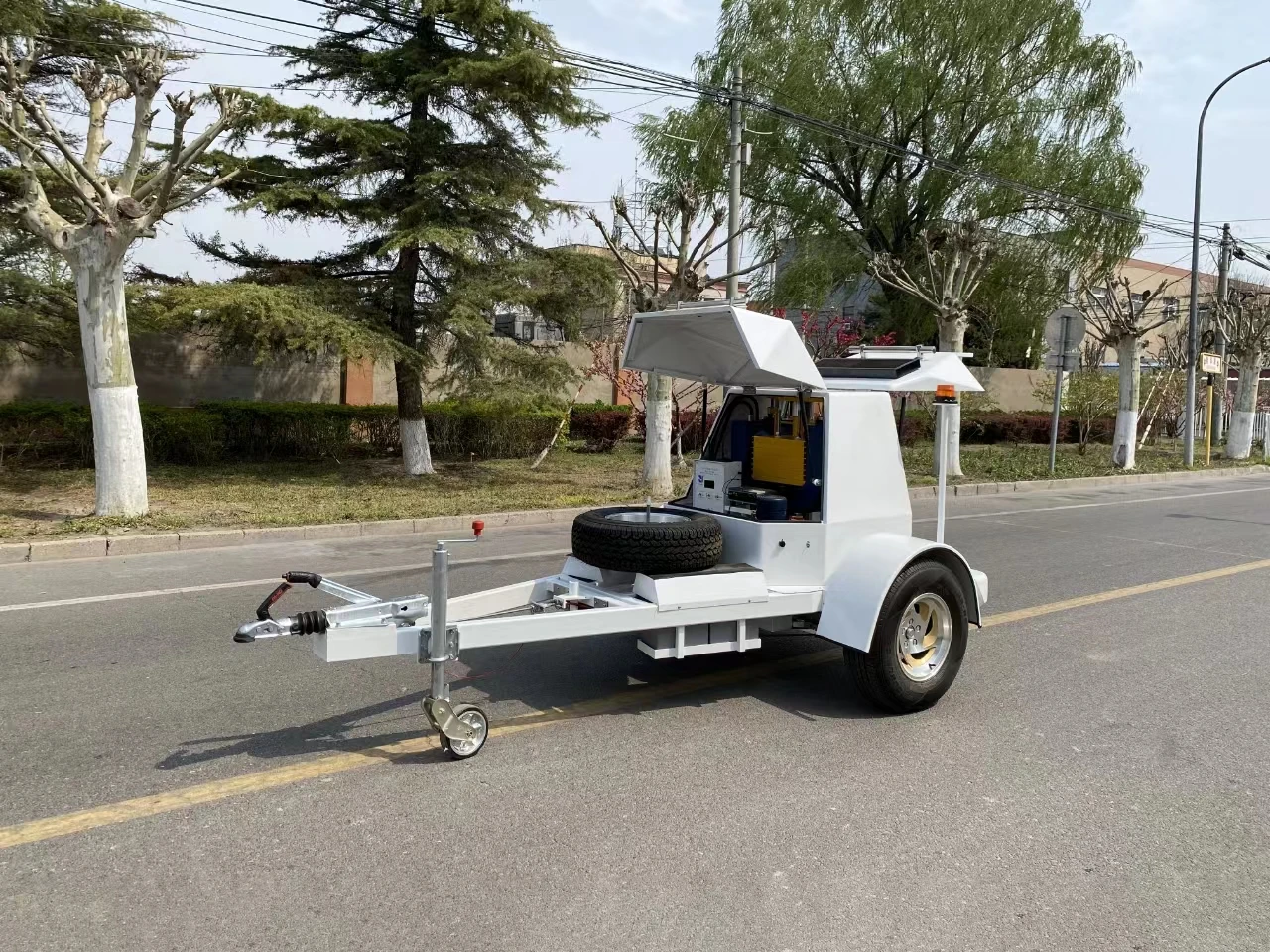

250kn Fully Automatic Trailer Drop Falling Hammer Weight Deflectometer Testing Machine 250kn Images
