B043 Laser Pavement Structure Depth Tester (push type) TD texture depth

Name: B043 Laser Pavement Structure Depth Tester push type TD texture depth
Brand: zealchon
Price: 9800 USD

China B043 Laser Pavement Structure Depth Tester (push type) TD texture depth wholesale

Brand Name : zealchon

Model Number : B043

Certification : ISO

Place of Origin : China

MOQ : 1set

Price : $9800

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100sets/month

Delivery Time : 7days

Packaging Details : wooden box

Power source : 12 v

Working hours : 12H

Laser sensor : ±20mm ±0.01mm

Working distance : 50mm-120mm

Test speed of push style : 3-12km/h

Contact Now

Product Description

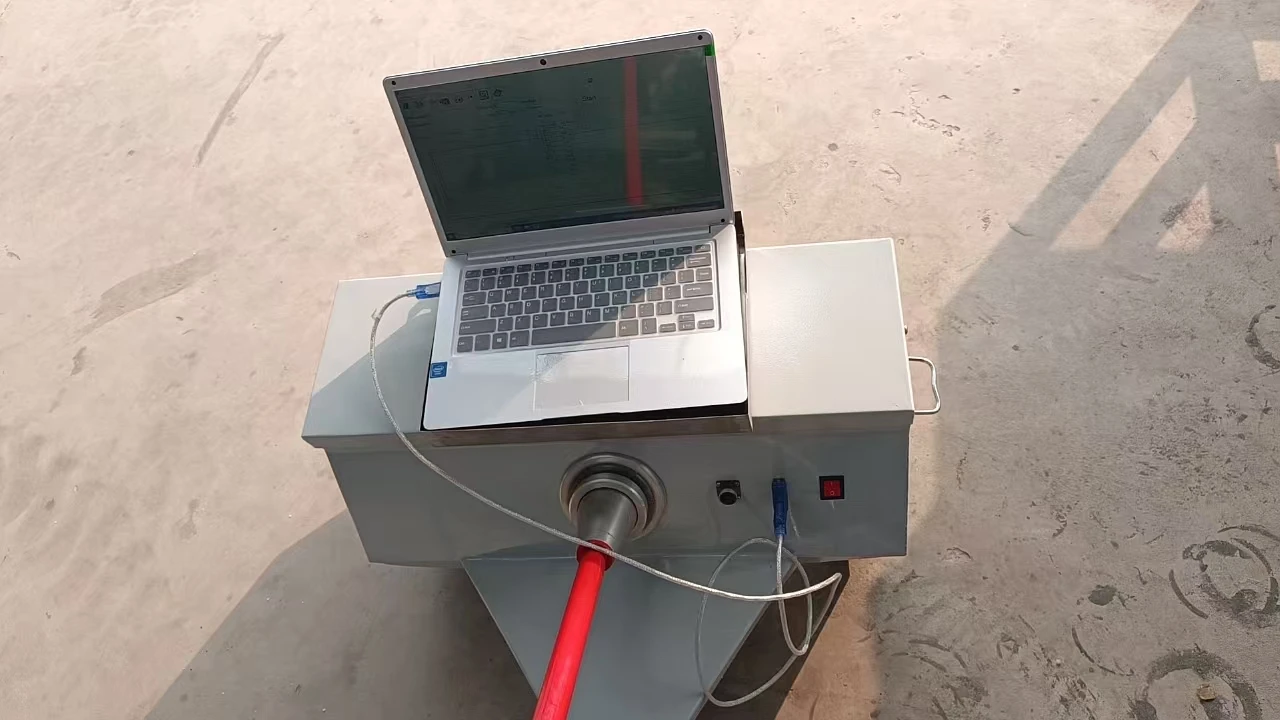

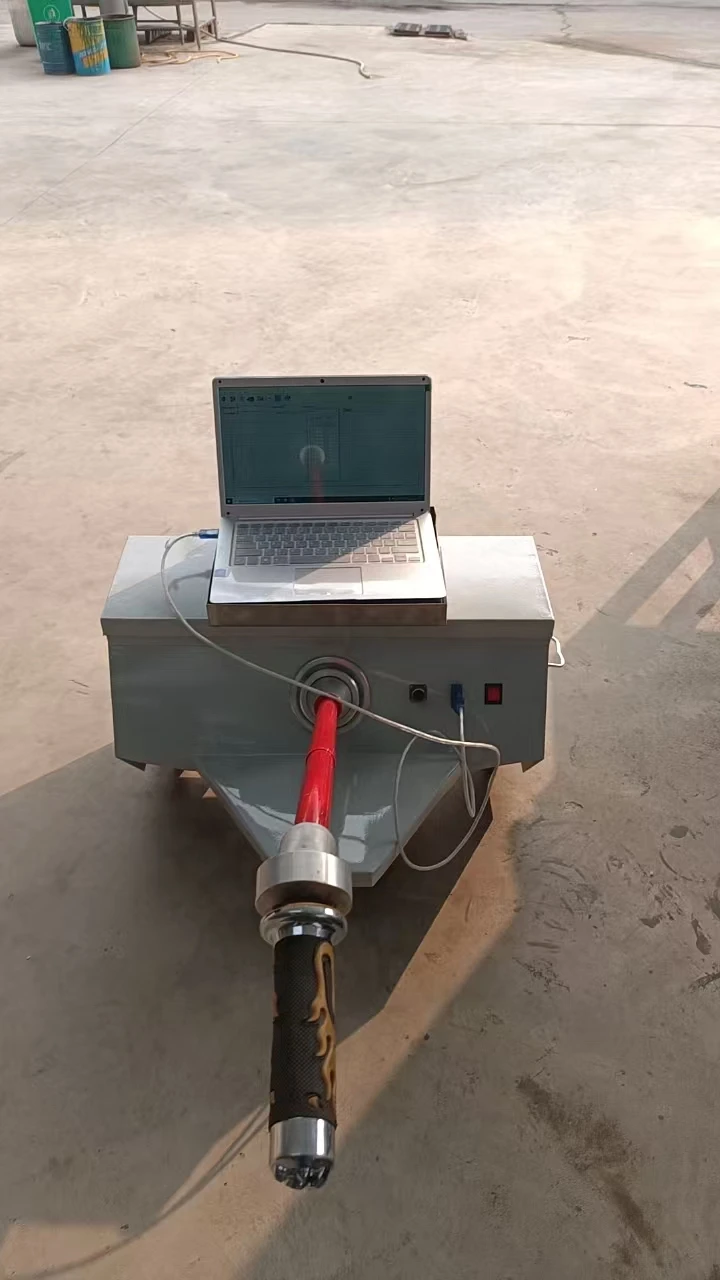

B043 Laser Pavement Structure Depth Tester (push type)

1. Automatic data acquisition, transmission, recording and processing with a compute, respectively conducted by specialized software automatic control 2. Power source: 12 v contained power pack and charging storage Working hours: 12H (Also can charge with car cigarette lighter) 3. Laser sensor ±20mm ±0.01mm distinguishability:0.1mm

Working distance:50mm-120mm distinguishability:0.01mm(linear measurement) 4. Acquisition interval:≤10m 5. Test speed of push style:3-12km/h operating temperature:-10℃-60℃ 6. Set time, the number of roads, the mileage number, pile number, collect depth structure average standard deviation, graphics, the original process data (analysis) automatically.

Parameter

Laser sensor	±20mm ±0.01mm
Working distance	50mm-120mm
Minimum sampling interval	10 mm
Sensor precision	0.1 mm
The number of operators (including the driver)	1-2 people
Operating temperature	0 ℃ to 50 ℃
System power supply	DC 12 V
Between the bottom of the laser sensor and the clear distance pavement	100 mm (testing)
Detection range: TRI	0-100 m and other detection distance can be set
Test repeatability	Deviation factor: CV < 3%
